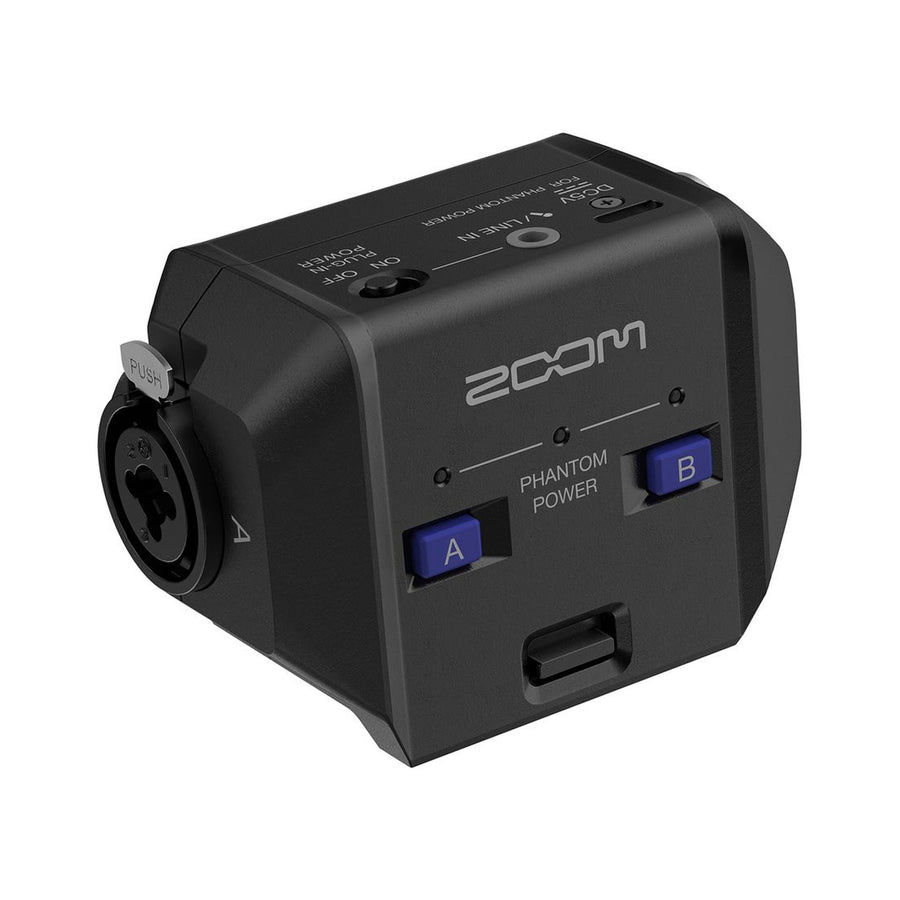

Zoom EXH-6e Input Capsule
- Free shipping — On every order, always
- Genuine, new inventory — Independently sourced
- 1-Year Warranty — Included on every order
- 30-day returns — Hassle-free
Ready to push your H6essential further? The Zoom EXH-6e input capsule slots right into Zoom's Capsule System 3.0 connector, delivering a rock-solid, locking link between the accessory and your recorder — and unlocking the full potential of 32-bit float recording for maximum dynamic range and headroom.
Three Inputs, Endless Possibilities
At the heart of the EXH-6e are two XLR/TRS combo inputs with locking connectors that accept both mic-level and line-level signals. Whether you're tracking a condenser microphone, plugging in a guitar, or routing output from a mixer, these inputs handle it cleanly. Alongside them sits a 3.5mm stereo mic/line input — perfect for lavalier microphones on set or capturing a stereo feed from an external source.
Power Where You Need It
The EXH-6e takes care of power, too. Connect the onboard USB-C port to an AC adapter or a USB battery pack to supply phantom power to condenser mics on the XLR/TRS inputs. Lavalier mics on the 3.5mm jack benefit from plug-in power, so every microphone type in your kit is covered without compromise. It's the expansion capsule built for creators who refuse to settle.
- Compatibility
- Zoom H6essential (firmware v2.02 or later), H6studio, H5studio
- Type
- Dual XLR/TRS combo input capsule module plus 3.5mm stereo mini input
- Function
- Adds two combo XLR/TRS inputs with up to +48V/10mA phantom power, plus a stereo mic/line input
- Connector
- Proprietary Zoom capsule mount
